Introduction

Regularly changing your car air filter - either once a year or every 15,000 to 30,000 miles - helps maintain the air in your car clean and ensures your HVAC system runs efficiently. Replacing the cabin air filter in a 2021 Acura ILX is a simple way to improve your air quality. This guide will walk you through the steps to safely remove the old filter and install a new one in just a couple steps and with minimal equipment.

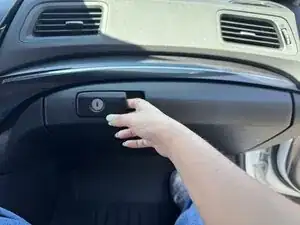

  1. RoAtMZIMMDElpVT1
    RoAtMZIMMDElpVT1
    b511NMM3qZvRToT5
    PUBROqU1LaSWIrvx

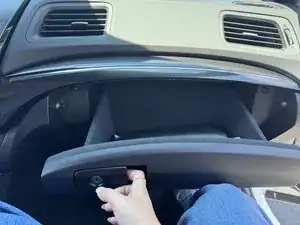

    • Open the glove box, located in front of the passenger seat on the right side of the vehicle.

    • Empty the glovebox.

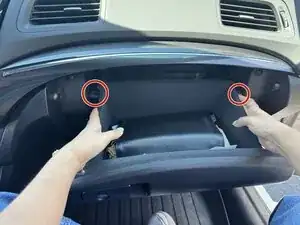

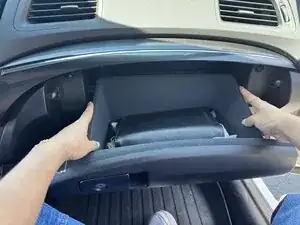

  2. lpEHCmjXDHBXEZjq
    lpEHCmjXDHBXEZjq
    YDiCOGGlTWvPsWOj
    jrJDQyG45pXtKFUA

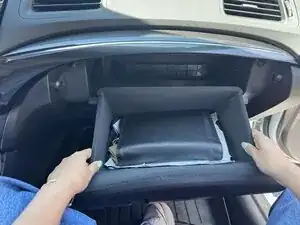

    • Press inwards on both sides of the glove box near the back, pulling towards you, to remove glove box.

  3. oAXKJ2fUvDZZYbHU
    oAXKJ2fUvDZZYbHU
    oGfyIYGYLSKChRn2
    OdfYPhZD1biOuJ32

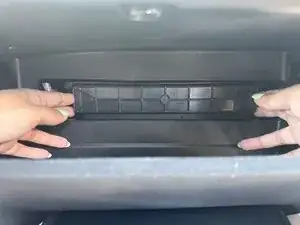

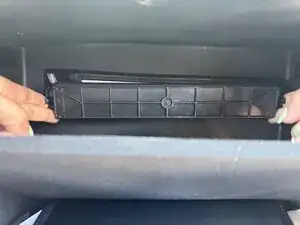

    • Behind the glove box there is a rectangular plastic cover. Squeeze the two tabs on the side and pull off the cover.

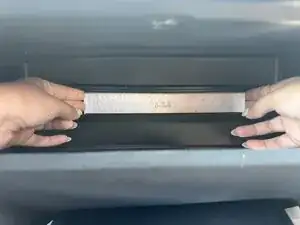

  4. HP3k2xuffrsyZvg4
    HP3k2xuffrsyZvg4
    mSDhfNlMuVVHJAEu
    B4wppr1CR3HPAHc2

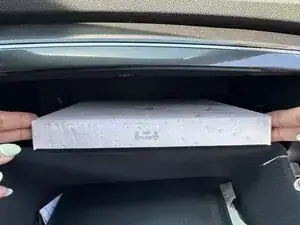

    • Pull out the old air filter to remove it.

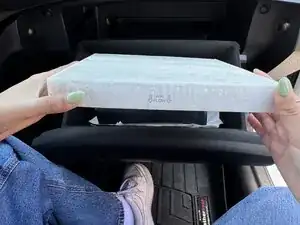

  5. RIaSf3hYKRieqkLp
    RIaSf3hYKRieqkLp
    nIIfat2iG44PgYpx
    cML6xxdg6WOXZLXS

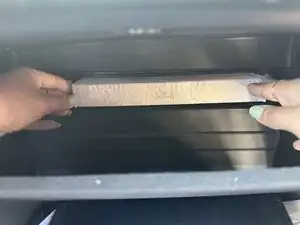

    • Insert the new air filter into the compartment. Make sure it is pushed all the way back.

    • Ensure direction of the air flow arrow is point down.

  6. Foi1SiTL1BR3QDYE
    Foi1SiTL1BR3QDYE
    siK2ZBJVyEQErU3A
    scP4QnRIqAB1eWEb

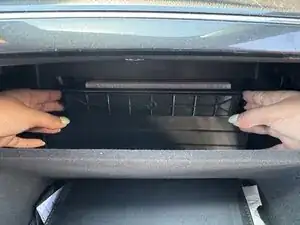

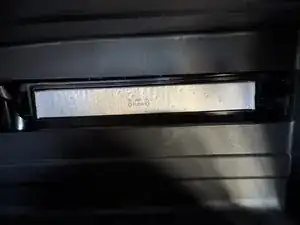

    • Clip the rectangular cover back on.

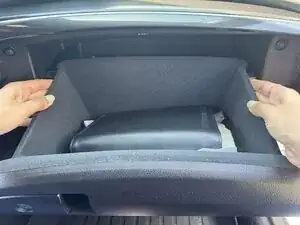

  7. fFvpdJekBfnQvQSb
    fFvpdJekBfnQvQSb
    FKZMfqT4DphwYnAQ

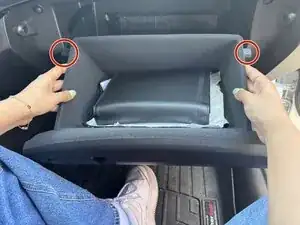

    • While pushing the glove compartment forward to close it, squeeze inwards along the slits on both sides so it re-insert into the opening.

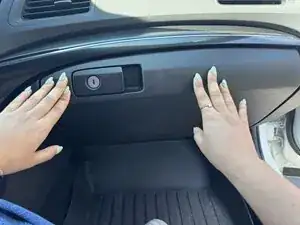

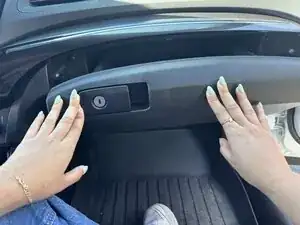

  8. CLFh4bWNoB1aWPVD
    CLFh4bWNoB1aWPVD
    qWaIWVCVJUlxJafX
    Jpk6e6bWfZXPMYev

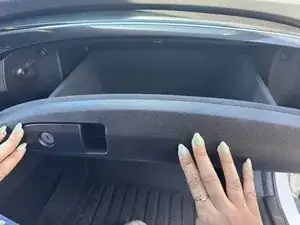

    • Close the glove box completely.

Conclusion

Congratulations, you’ve successfully replaced the cabin air filter in your 2021 Acura ILX!
