Astro A20 Battery Replacement

Written By: Jasmine Yarbrough
  • Comments: 7
Astro A20 Battery Replacement

Difficulty

Moderate

Steps

9

Time Required

10 - 15 minutes

Introduction

If the Astro A20 will not turn on or the battery will not charge then you will need to replace the battery.

  1. R3DMTXYSKIihcf3l

    • Place one hand on the hard side of the headset ear portion and on the cushion.

    • Lift the small portion on the edge of the cushion.

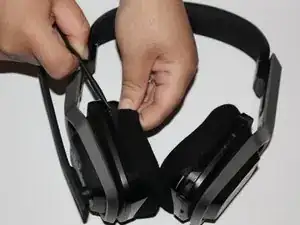

  2. f2evNQFZpJlwqNqP

    • Slide the metal spudger underneath the lift part of the ear cushion.

    • Pull the ear cushion while wedging the spudge around the edge of the ear cushion.

    All of this is accurate, except the battery & motherboard Are on the charging port side, opposite mic side unlike picture. The right earphone is correct side.

    rebjr2880 -

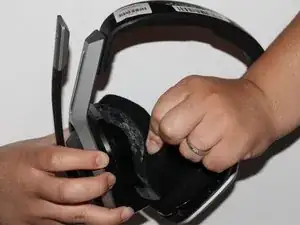

  3. PsP4oUUBERThuDMq
    PsP4oUUBERThuDMq
    ZoAGsMyWrVegrMVw

    • Remove the ear cushion from the headset.

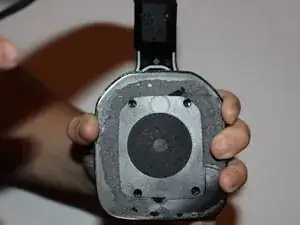

  4. ZMTCxHxkyqA4ktMS

    • Place hand on the opposite side of the speaker.

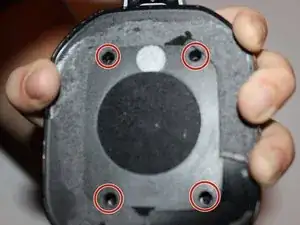

  5. Y2utt2tOwca26hSE
    Y2utt2tOwca26hSE

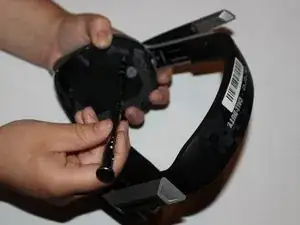

    aX6OEQWIKMNv3dpA

    • Remove the four 7mm screws with a Phillips #1 screwdriver.

    • You may want to use a 60mm screwdriver extension to reach the screws inside of the headset.

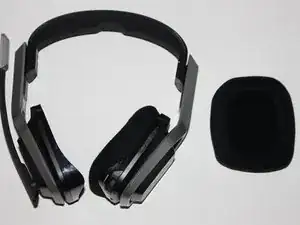

  6. slXaFgLbja2MPWkA

    • Lift and remove the speaker from the headset.

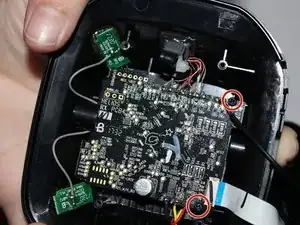

  7. 2bKnFT1BprFetXmW

    • Remove the two 7mm screws with a Phillips #1 screwdriver.

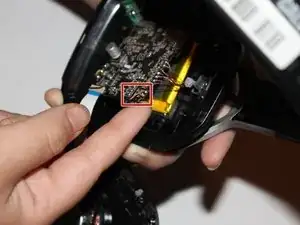

  8. fK1PvejGXjeTqJYT

    • Lift the motherboard to expose the battery.

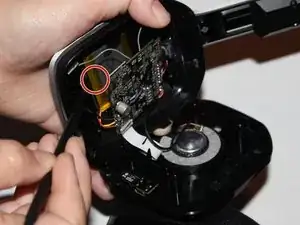

  9. kFMFZGJfgyVA4Zbt

    • Remove the battery with a plastic spudger.

    Where did you manage to find a replacement battery?

    mpapendorf -

    Where do I get the battery from can not find it on eBay only can find for the Astro a50 I need it for the Astro a20

    Michael s -

    Hey, does anyone know where I can find that battery?

    Rayner Duramer -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Jasmine Yarbrough

Member since: 10/09/18

1017 Reputation

3 comments

Does it work for Astro A20 2nd Gen too?

Charly -

this guide is so wrong! 1st the battery is on the left side by the charging port (a20 2gen)

Miguel Garcia -

That head set is A20 gen1 but main board in right side

from 7th pic that is right side

If you have no idea which is left side or right side.

just check where is buttons

Leo Lee -
