Introduction

As your device ages, the battery life often severely degreades. Instead of throwing away your device, consider replacing the battery instead.

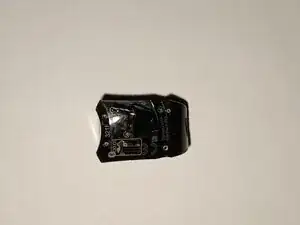

  1. YwSsJmQsDmWnPQoA
    • Detach the Bluetooth module from the left earcup of the headphones.

    • Turn off the Bluetooth module before proceeding.

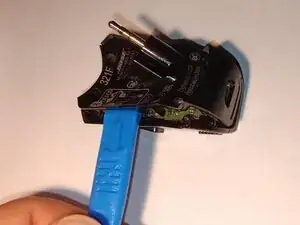

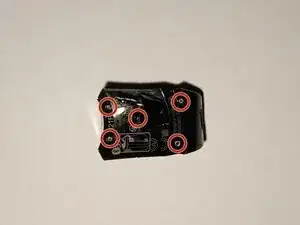

  2. obNeqRCNcYYuLFah
    obNeqRCNcYYuLFah
    mhENr1ots4dysyp3
    • Remove the five screws on the module using a small tri-wing bit and a Phillips head bit.

    • Using an opening tool, gently pry the cover from the sides and open the module.

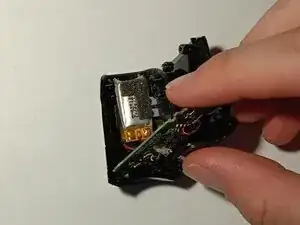

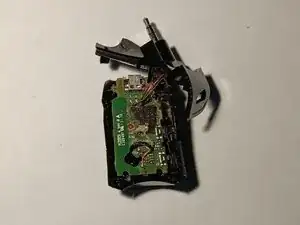

  3. LPThLI6yVNkjwOdb
    LPThLI6yVNkjwOdb
    WyQ1hetkmnFhORZW
    • Gently lift the PCB to reveal the battery.

    • There may be a small piece of tape holding the PCB down that will need to be removed.

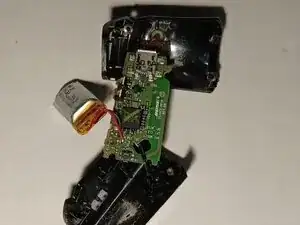

  4. NAyc2vX3MBXvQTsD
    NAyc2vX3MBXvQTsD
    xMDCjUhwyxWFriyH
    • The battery is secured with adhesive to the back of the module. Using the opening tool, gently pry off the battery.

    • Take care not to puncture the battery as you pry it off.

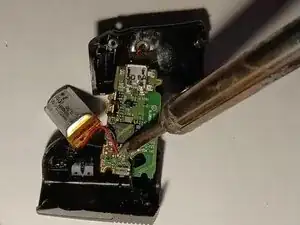

  5. ZXATBlm4xysgjRna
    • Carefully desolder the two battery wires from the PCB.

Conclusion

To reassemble your device, follow these instructions in reverse order.
