Summer LookOut Duo Camera Stand Replacement

Written By: Jordyn Looney
  • Comments: 0
Summer LookOut Duo Camera Stand Replacement

Difficulty

Easy

Steps

2

Time Required

5 minutes

Introduction

If your Summer LookOut Duo baby monitor cameras are having trouble staying in position or they broke, then you may need to replace the stand. This step-by-step guide goes through how to replace the stand of baby monitor cameras.

Before proceeding, make sure the device is powered off and dry to avoid internal damage to the device or potential shock hazards.

CHOKING HAZARD: This device contains small screws. If possible, use a magnetic mat or small container within eyesight to keep track of the screws to prevent possible ingestion or misplacement.

  1. vvrNPbfZmpM6OKMj
    vvrNPbfZmpM6OKMj
    hCb6Od1bTaPSnGnH

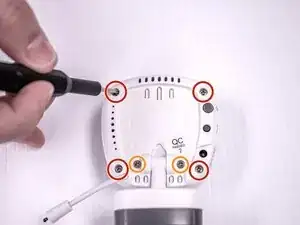

    • Remove the plastic wall mount attached to the base of the stand.

    • Remove the four 9 mm screws on the back four corners of the camera using a Phillips #00 screwdriver.

    • If needed, gently bend the antenna of the camera out of the way to access the screw in the bottom left corner.

    • Remove the two 8 mm screws near the bottom center of the back of the camera using a Phillips #00 screwdriver.

  2. UeUhfvMMZExkVw6k
    UeUhfvMMZExkVw6k
    ujgACqOs2SXPBPgp
    XQvwvEA2QjBOjNKq

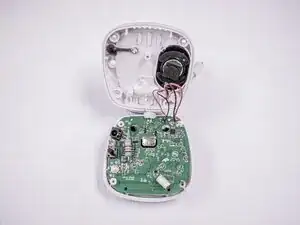

    • Gently remove the front casing.

    • The motherboard will go with the front casing, so don't pull too hard or else the wires connected to the speaker might break.

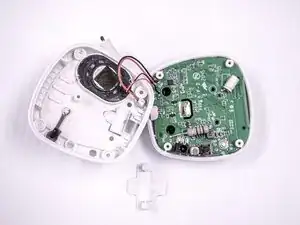

    • Grab the base of the stand and rotate it 90 degrees so the head of the stand is perpendicular to the opening. Tilt the head down and pull it through the opening.

    • Replace the new stand.

Conclusion

To reassemble your device, follow these instructions in reverse order.
