Summer LookOut Duo Navigation Buttons Replacement

Written By: Jordyn Looney
  • Comments: 0
Summer LookOut Duo Navigation Buttons Replacement

Difficulty

Easy

Steps

5

Time Required

10 minutes

Introduction

If the navigation buttons on your Summer LookOut Duo baby monitor are refusing to function or need cleaning, this guide is a step-by-step on how to access the navigation buttons for cleaning or repair.

Before proceeding, make sure the device is powered off and dry to avoid internal damage to the device or potential shock hazards. Some electrical components will need to be removed in order to get to the navigation buttons.

CHOKING HAZARD: This device contains small screws. If possible, use a magnetic mat or small container within eyesight to keep track of the screws to prevent possible ingestion or misplacement.

  1. u4lCGnrfF1MjU3S5
    u4lCGnrfF1MjU3S5
    sL2CWbia2SrrkAZr
    ZFTWpyon5uqFVDZh

    • Flip the device over so the back is facing up.

    • Remove the 9 mm screw using a Phillips #1 screwdriver.

    • Lift the battery panel away from the device.

  2. GV4XISCe2YEUMBhZ
    GV4XISCe2YEUMBhZ
    XZxIIPUipvbVrBsQ
    PlBRbhCeRHCuiadH

    • Flip the handheld monitor over and let the battery fall out into your hand.

    • Using angled tweezers, gently remove the plastic wire coupling from the side of the open battery compartment.

    • If the coupling struggles to release, with a loose but firm grip, slightly wiggle the plastic wire coupling back and forth until it releases.

    • Remove the battery from the device.

  3. MfKnwk5hetTAPlQ5
    MfKnwk5hetTAPlQ5
    gKFBATXBJXUNVKcv
    jf5dlaW1maWSbacY

    • Using the Phillips #00 screwdriver, remove the four 7mm screws from each corner on the back of the handheld monitor.

    • Remove the casing from the back of the handheld monitor.

    • A nylon spudger may be helpful to pry the case open.

    • Using the angled tweezers, gently remove the plastic wire coupling connecting the speaker to the motherboard.

    • The power button may come loose as the case is being removed.

  4. 12S1OFOSvYRNDjiH
    12S1OFOSvYRNDjiH
    lsFFSCEDGZULxFvC

    • Remove the motherboard and monitor display together and set aside.

  5. gx3DXK6CbXXaMYNL
    gx3DXK6CbXXaMYNL
    2QQQObUEIUiNStDe

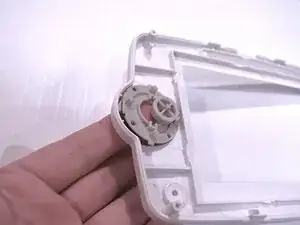

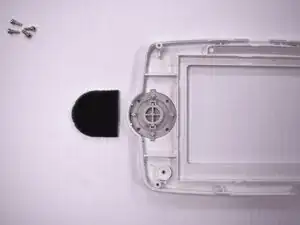

    • Gently remove the black foam padding from the back of the buttons.

    • Using your fingers, gently lift the navigation buttons from the front monitor casing.

    • There are two sets of buttons: the outer navigation ring and the inner menu button.

    • The buttons are not fixed in place and will readily push out of the case. Use light force to prevent loss.

Conclusion

To reassemble your device, follow these instructions in reverse order.
